Before we look at layouts, we need to see how CAD is used in n4ce. Unlike previous systems from AiC Ltd, CAD is at the heart of many n4ce features. It does not control the UI or the database, being just another tool in n4ce’s Geomatics Software toolbox.
CAD is used in:
- Drawings using paper space and model space viewports to create final presentations.
- To embellish Models with tables, hatching and other details, extracting points for Modelling.
- For creating general CAD detail, including symbols and plotting sections.
Note: Once your data has been exported, any changes you make won't be reflected in the original source data, and changes to the source data will not be reflected in the exported file.
n4ce CAD

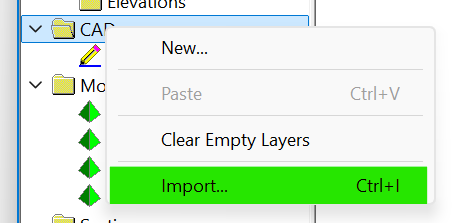

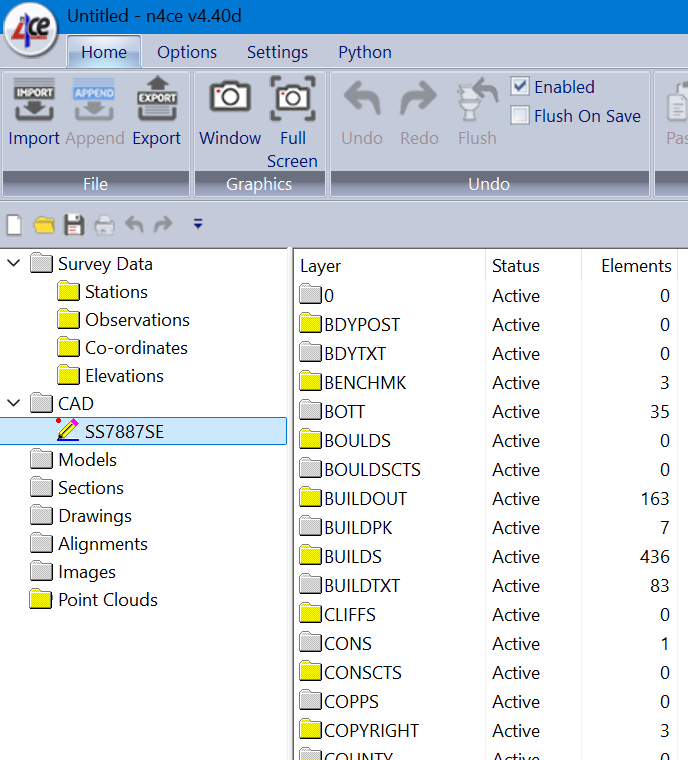

CAD folders are organized within the Project Tree and can be created as new, empty directories or populated from a variety of external sources, including AutoCAD (DXF, DWG, DWT), Adobe PDF, and OS Mastermap GML files.
When importing or exporting CAD data, AutoCAD blocks and n4ce symbols are mutually convertible, though you should keep the following structural differences in mind:
AutoCAD blocks can contain elements drawn across multiple layers. During conversion into n4ce symbols, these elements are flattened onto a single layer.
n4ce symbols support an origin point and up to two additional handles, which determine how the cursor grabs, aligns, and rotates the symbol during placement. These additional handles are lost when converted into an AutoCAD block.
Scale and Unit Configuration for AutoCAD Imports

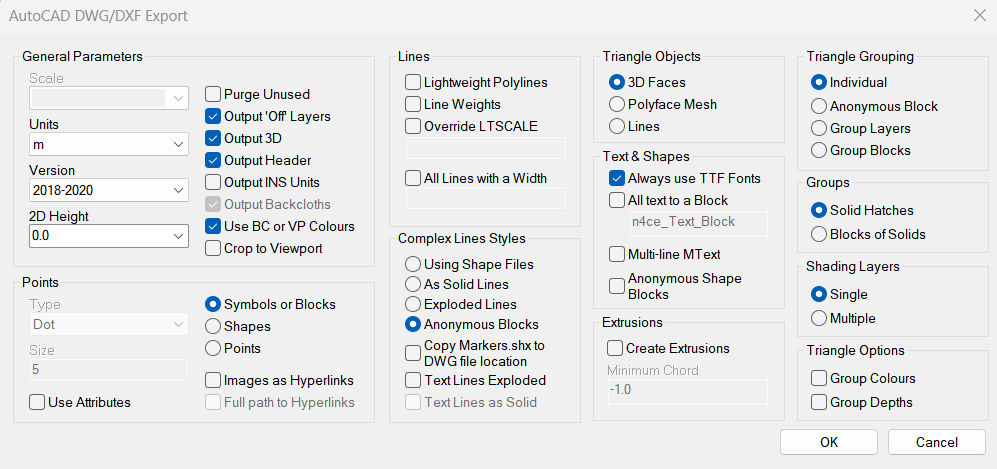

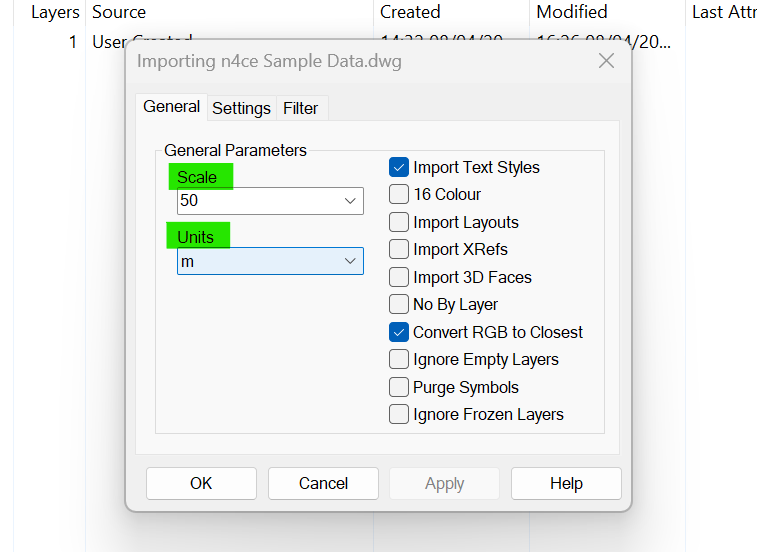

When importing AutoCAD files into n4ce, you must specify both the drawing scale and units to ensure proper conversion:
Because architects typically work in millimetres (mm), setting the correct import units ensures proper geometric scaling and coordinate alignment within your project.
AutoCAD defines text sizes in ground units, whereas n4ce uses millimetres relative to specific drawing scales. You must define the drawing scale during import to prevent incorrect text sizing.
DTM Import and OS Map Layer Filtering options
Direct DTM Import: If a CAD file already contains a Digital Terrain Model (DTM), it can be imported directly into a Model. This recreates the original DTM as defined in the source package, eliminating the need to extract points from CAD features to generate a new surface.
Historic OS Map Filtering: A Filter option is available when importing historic OS Maps with non-descriptive layer names. This automatically maps cryptic layer names (for example, converting
G80010001toBuilding Layout) for clarity.Layer Styling: Additional tools allow you to customize the line colour and line style for individual layers.
Note: You must select the Enabled checkbox for any custom layer mapping or styling changes to take effect during import.

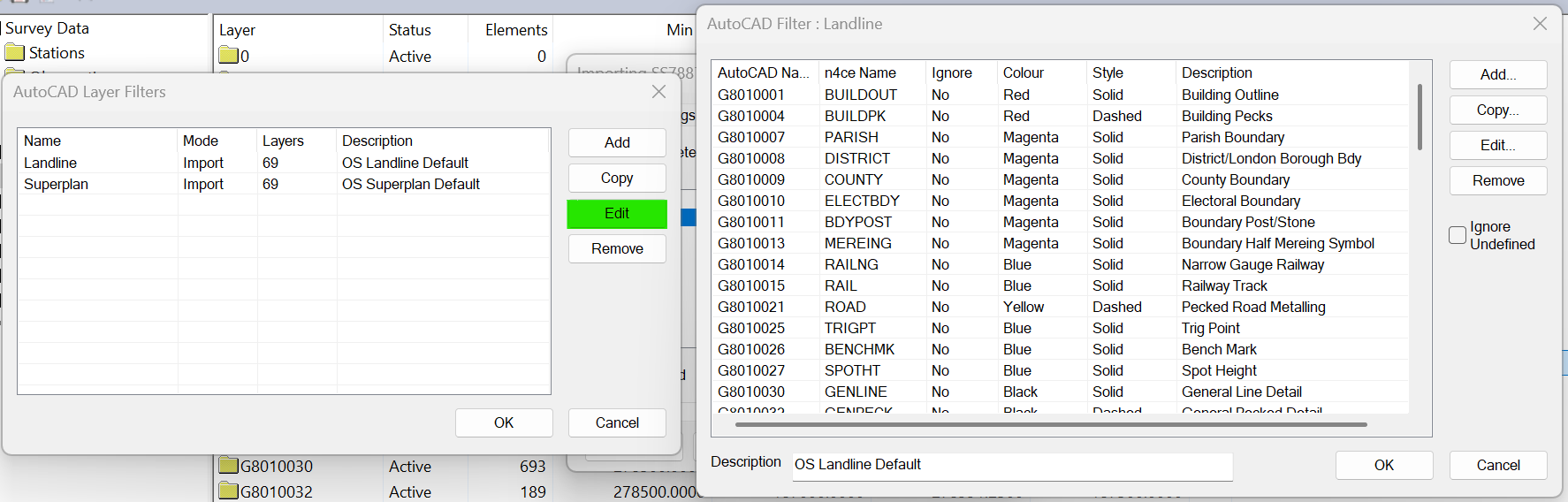

Once you have selected the filter to apply, the Layer codes will change accordingly, as seen below.

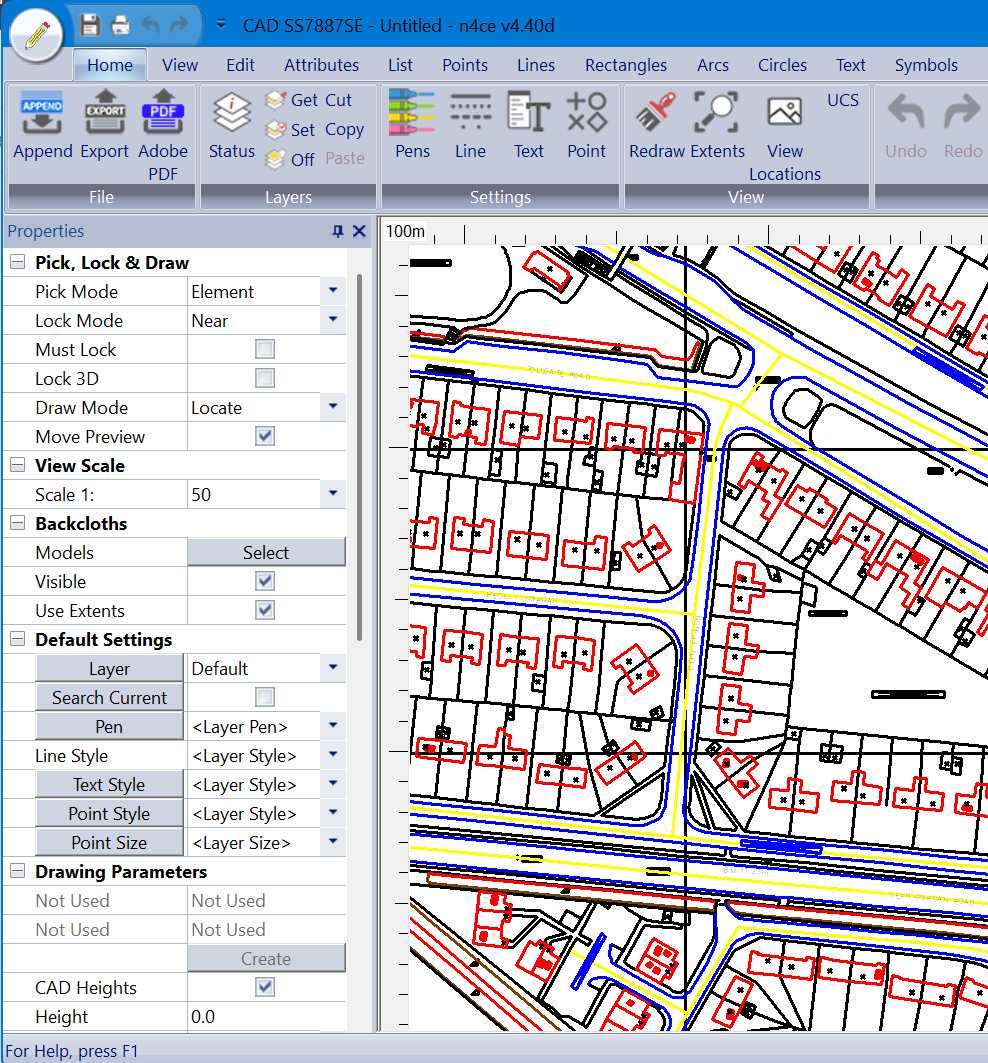

CAD folders can be accessed in two distinct viewing modes: as a structured list of layers within the display window or directly inside the graphics environment. Comprehensive editing tools, including the ability to copy and paste selected layers, are fully available across both views. Furthermore, selecting the Edit button during the AutoCAD file import process allows you to customize the line style for individual layers before finishing the import.
Each Model also includes a specialized overlay known as the Dedicated CAD Backcloth, which serves as a workspace for non-survey or non-model elements such as curve-fitted contours, tables, hatching, and sections. You can access the Dedicated CAD Backcloth by selecting the Pencil icon in the Classic and Ribbon UI.
Operating as a shared overlay, the backcloth synchronizes both layer structures and view states with the main model. Consequently, when both the Model and Dedicated CAD windows are open simultaneously, zooming or panning in one window automatically mirrors the movement in the other via Synchronised Zooming.
Plotting Sections in CAD
Sections can be generated across various locations within n4ce, supporting configurations such as section volumes, river sections, and radial sections for visibility analysis and measurement tools. These sections can be defined as single or multi-profiled, as well as longitudinal or cross-sectional.
Once created, section profiles are automatically stored within the Project Tree within the sections folder, where they can be dynamically previewed once opened. This live preview allows for real-time querying and visualization of key settings, including drop lines, nodes, and height differences, offering an immediate and interactive view of your section data.

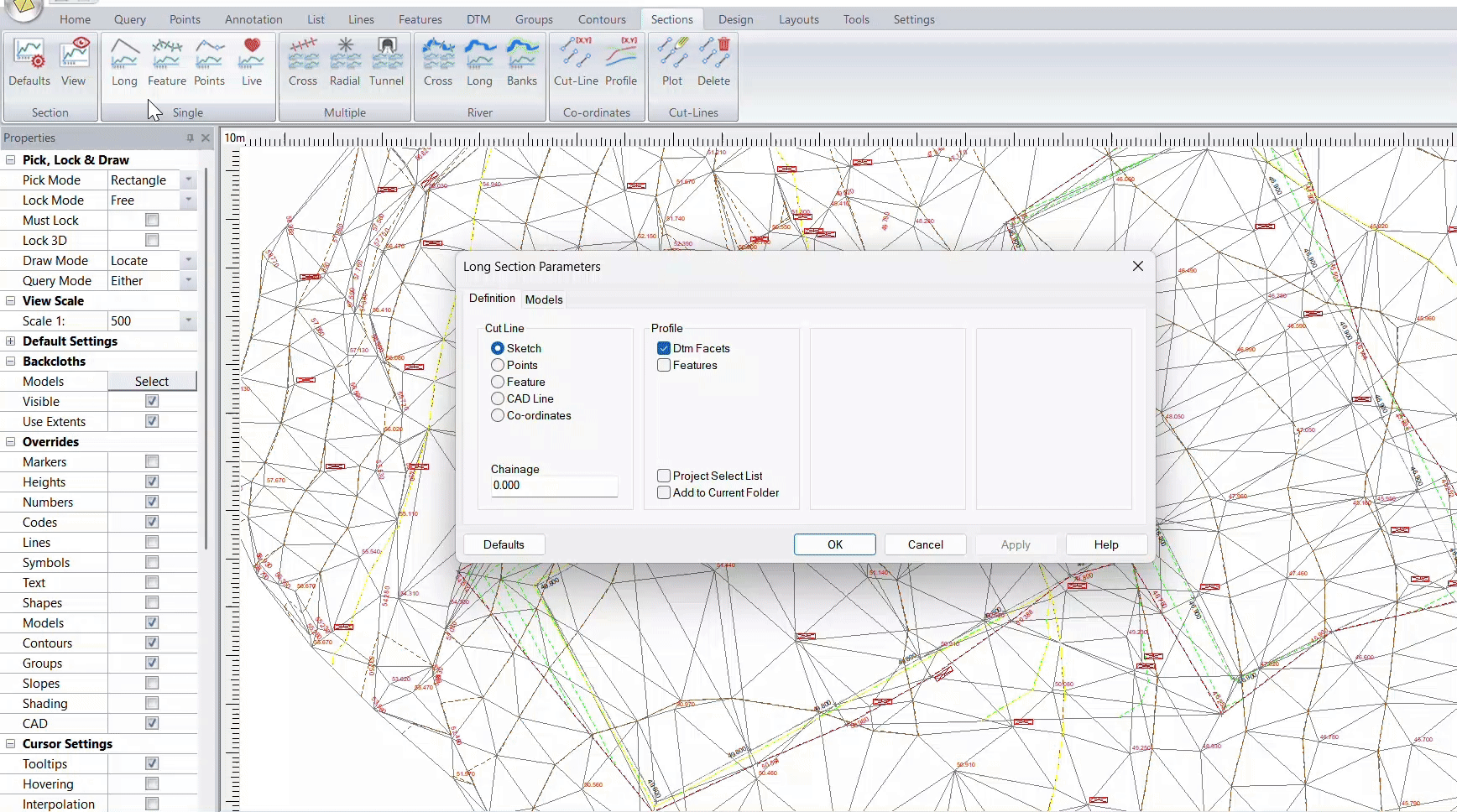

Sections can be plotted directly within CAD model space or prepared for layout inside a Drawing paper space. The plotting options provide extensive customization through user-defined settings, enabling you to calculate and display key measurements such as cross-sectional areas and height differences between multiple profile surfaces. Prior to final output, n4ce generates a preview dialog box, allowing you to make any necessary changes to the drawing scale and overall dimensions of the section.
n4ce Drawings
n4ce includes tools to help you create final drawing presentations using the standard CAD window. You draw in metres based on your chosen paper size, such as A0 (1.189m x 0.841m), A1 (0.841m x 0.594m), or A2 (0.594m x 0.420m).

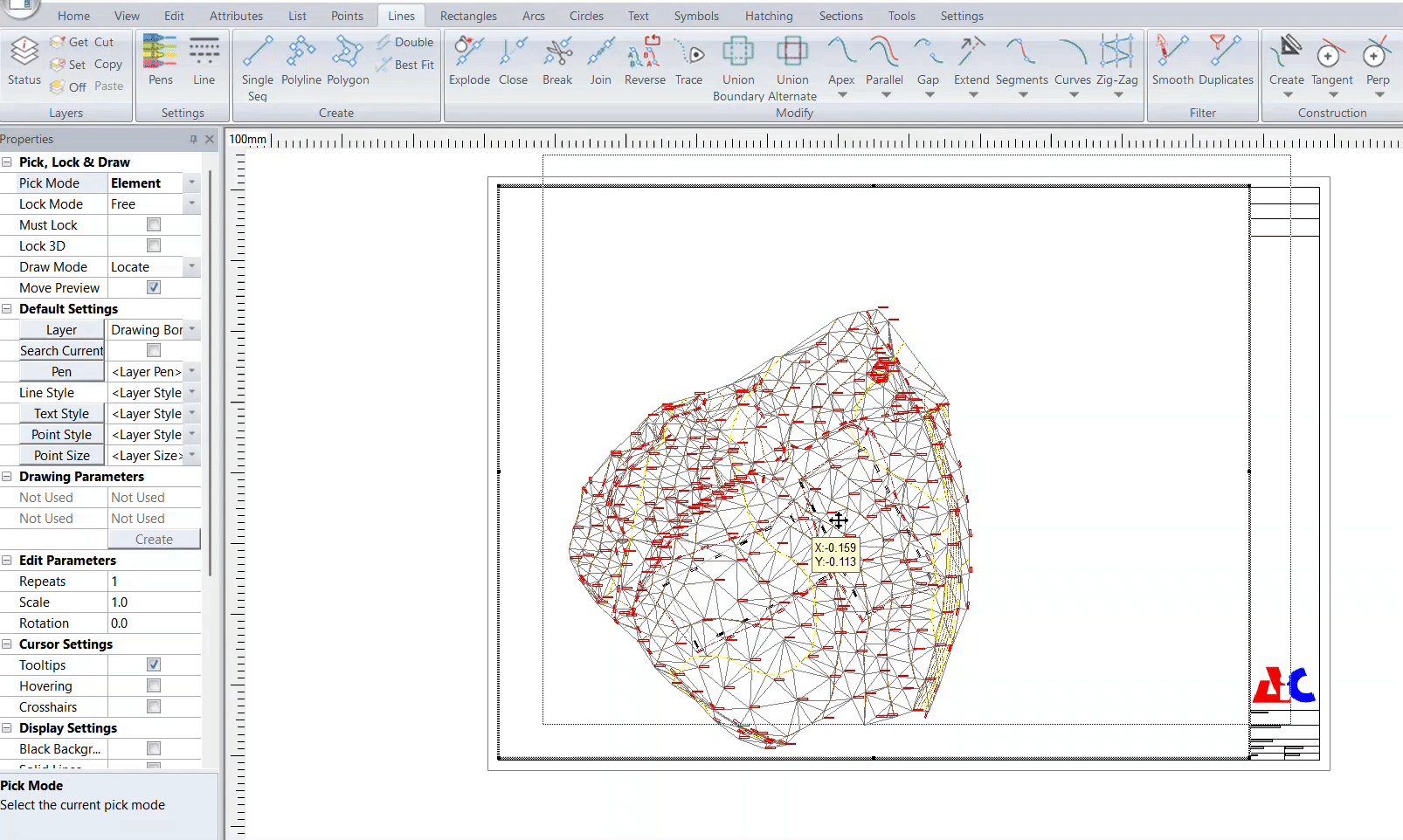

Drawing Templates allow you to set up standardized layouts containing title blocks, legends, and north arrows directly in paper space. While you can draw sections, tables, and other CAD details in paper space, survey data and terrain models—such as contoured surfaces—are best plotted and viewed in model space.
To learn how to set up a template for your workflow, watch our step-by-step video guide: Drawing Template
To bridge paper space and model space, n4ce uses Viewports. A Viewport acts as a window onto your project, allowing you to plot model space detail at a designated scale. You can combine CAD, models, alignments, images, and point clouds as overlays within a single viewport, making it easy to display multiple types of data simultaneously. You can add multiple viewports to a drawing and adjust their position or size using the grips along the corners and mid-sides of the border. Any updates made to the original source data or layer settings are automatically reflected in the viewport.

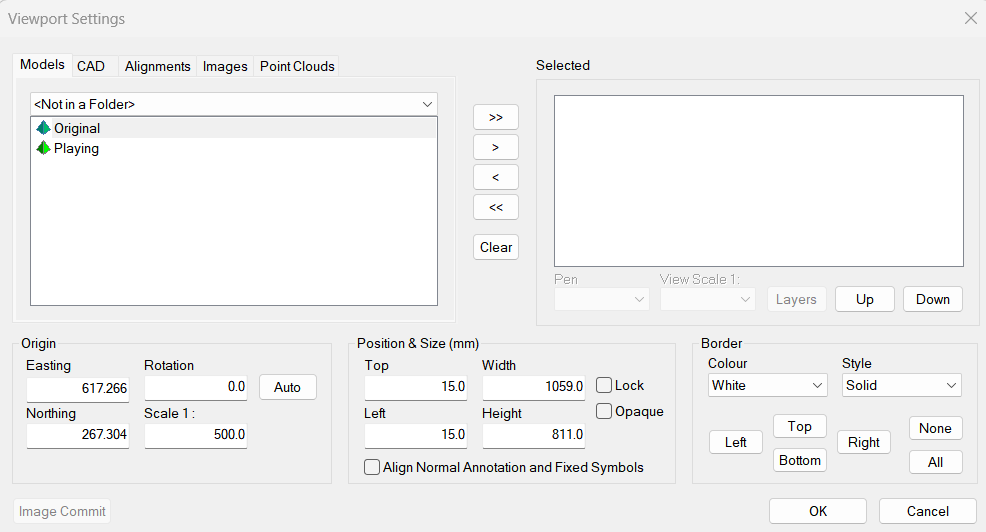

Selection detail to be shown in a viewport is controlled using Viewport Settings. Right-click anywhere within your template and select Viewport Settings.
Using Auto Viewports
The Viewport Settings menu allows you to select which CAD data, DTMs, alignments and images to overlay within a view. When configuring these settings, select the Auto button to center the chosen data within the viewport; omitting this step may cause elements to fall outside the visible area. Once centered, data can be nudged within the viewport without moving the viewport frame itself. If your data sets are located at widely separated coordinates, create individual viewports for each set rather than combining them into one, preventing elements from appearing zoomed out or out of frame. As shown below, the drawing utilizes three separate viewports to clearly present distinct data sets simultaneously.

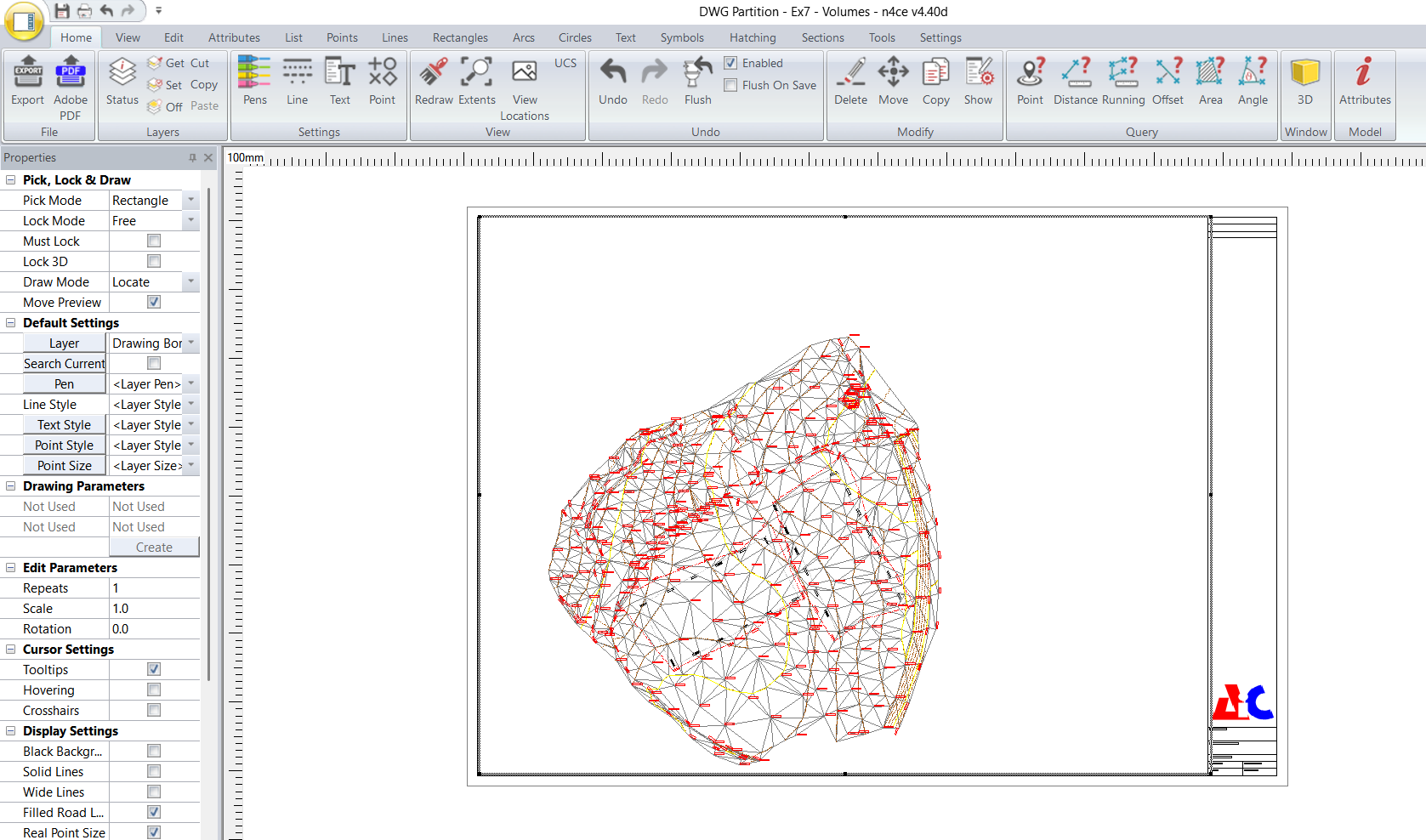

This final presentation drawing features a viewport displaying two models; one of which is lightened for clarity alongside a section drawn in paper space and an image captured from the 3D viewer. The completed drawing can be printed directly or exported to AutoCAD. Because drawings support multiple viewports, an alternative workflow is to plot the section in model space and display it within its own dedicated viewport.
n4ce Layouts
While single project-wide drawings can use viewports to zoom into specific details at larger scales, Layouts offer an efficient alternative by utilizing a Drawing Template as a large-scale grid or cutting pattern. This enables you to automatically generate single or multi-sheet drawings complete with predefined title blocks, legends, and notes. To use this workflow, you must first create a Drawing Template set to your nominated paper size containing a single empty viewport.

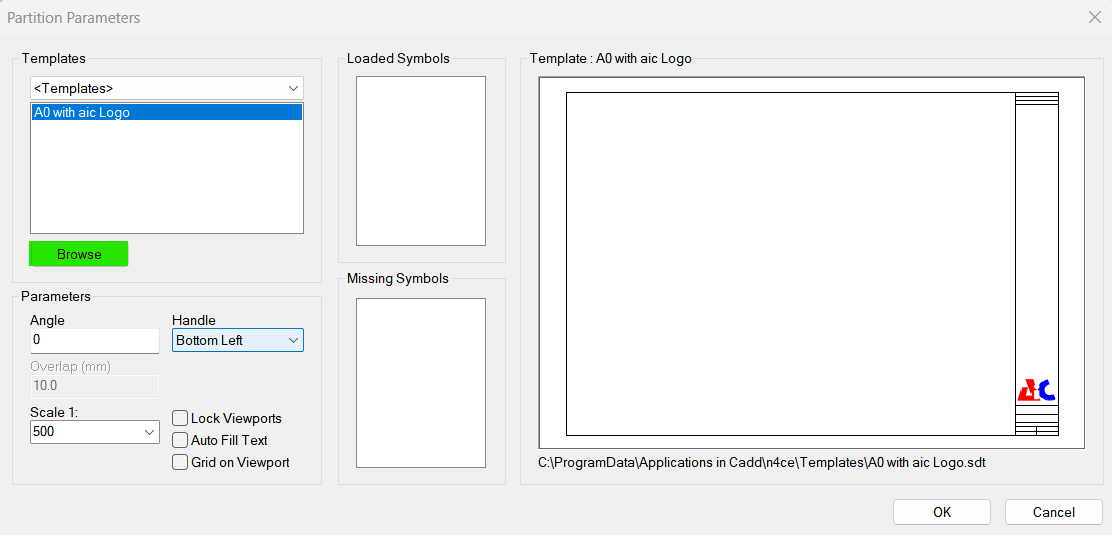

You can configure these settings in the Drawing Parameters dialog box, where you can adjust the angle, scale, and symbol assignments. If you have previously saved layout templates to your computer, select the Browse button at the bottom of the Templates section to locate and import them into your project.
First, define your locating handle and orientation direction. In this example, we will select the bottom-left option.
Viewport Overlap: Set an overlap of 10mm. This is recommended when working with large models, as it ensures adjacent viewports overlap cleanly.
Layout Location: Layouts can be generated either directly inside a Model or within CAD.
In the following example, we will set up a Layout from a Model where the data is initially off-center. Watch the short video below to see how to adjust and re-center your data.

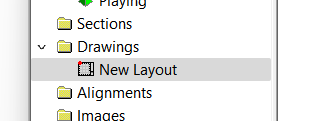

As shown in the image above, the original Model folder is set to a scale of 1:500 and is currently off-center. The video below demonstrates how to adjust the viewport and fine-tune its positioning manually. However, when creating a new drawing, it is best practice to click the Auto button (see image below), which automatically centers the data for you. Once generated, the finished layout will be stored directly in the Project Tree.
Adjusting data position within the viewport
All layouts in n4ce are live. This means any modifications made to the source data will automatically update across all associated layouts.
Furthermore, if you adjust the position of an image inside a Drawing layout, the corresponding layout outline shown on the Key Plan will dynamically move to reflect the new location.
Export to AutoCAD will also pass across Model and Viewport detail, as shown below, noting that tabs provide access to viewports. More information on CAD layouts can be found here.
