Image Editing within CAD

Within n4ce 4.30 we have now added tools to place and edit images directly within the CAD editor. To do this open a CAD window and select Tools. The following options will be available.

Standard

Ribbon Bar

Please Note: These tools are now also within the Drawing editor replacing Create --> Picture.

• Place: This allows you to import an image into the CAD editor.
• Delete: This allows you to remove an image.
• Move: This allows you to manipulate the position of an image.
• Copy: This allows you to duplicate an image.
• Resize: Increase or decrease the scale of an image.

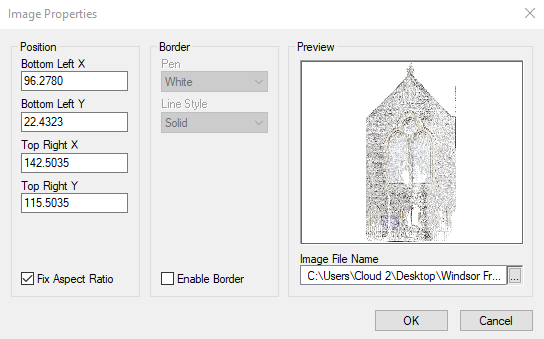

• Properties: Display all of the properties of the image. E.g. Coordinates, File Location, Border and Aspect ratio.

• Backcloth: Moves the image into the backcloth.

Please Note: When exporting the file to a DWG the image is not included so the image will need to be kept with the export.
