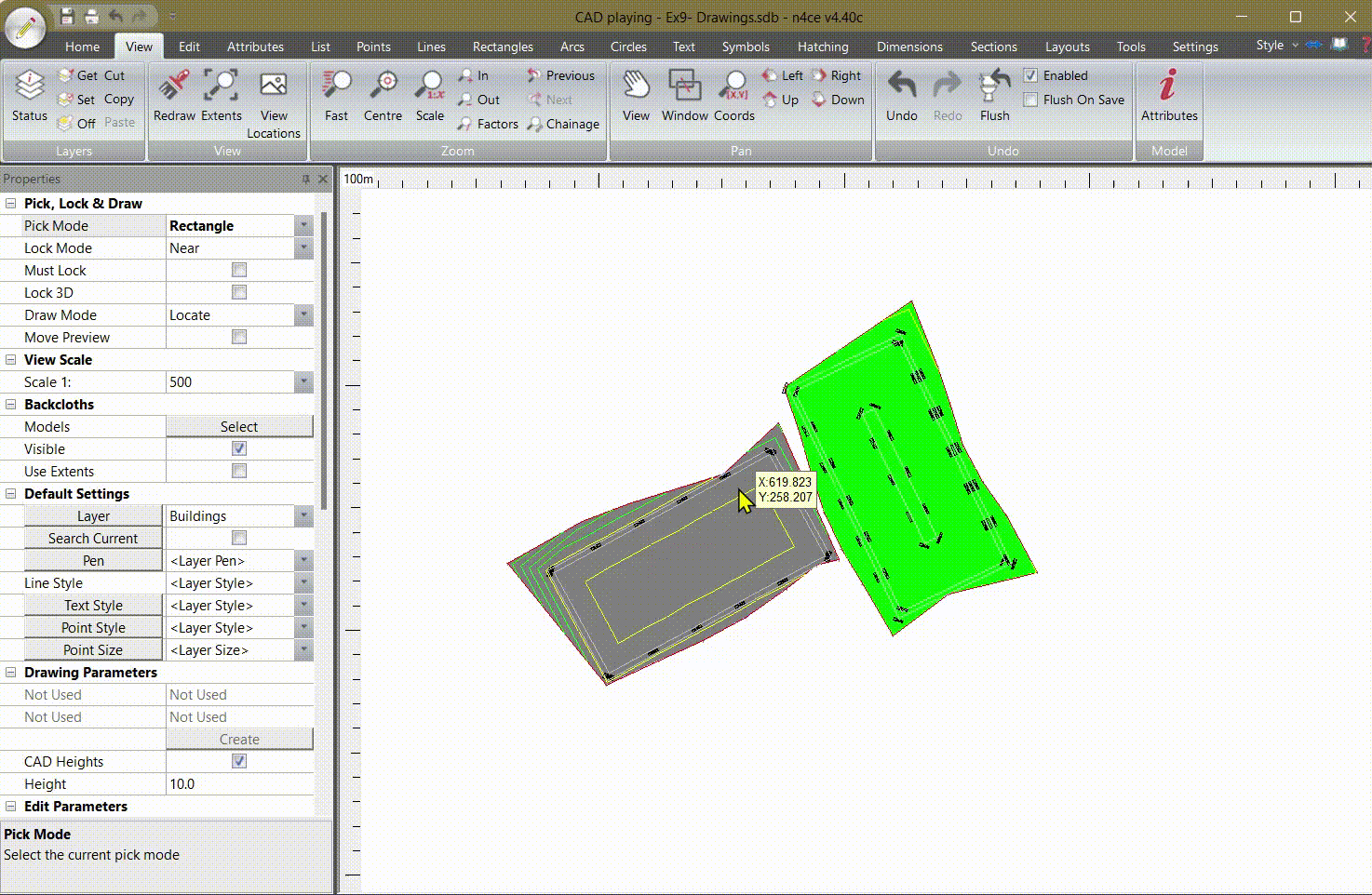

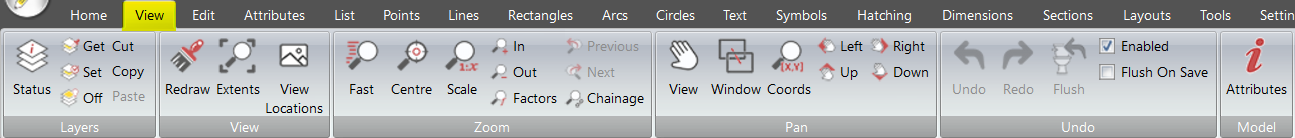

The View tab opens up numerous functions you can use to view and manipulate your CAD drawing as explained below:

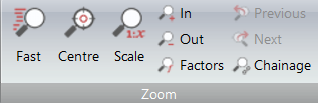

Zoom

• Fast: This feature allows the user to zoom in on a specific area by selecting a two-point rectangle window.
• Centre: Users can select a centre point of data and extend the viewing window to the required size.
• Scale: Allows the user to enter specific values in which to scale the current view.
• In: Will zoom in on the current viewing window.
• Out: Will zoom out of the current viewing window.
• Factors: This will allow the user to select the zoom factor when scrolling in and out of the current view.

• Previous: Will return to the previous view window.
• Next: Returns the window view back to the last setting it was changed to.
• Chainage: Zooms to a nominated chainage or an alignment string.

Pan

• View: Allows the user to drag the current view to a new position.
• Window: This function will drag the current window to a new designated position
• Coords: Allows the user to pan the current view to be centred on required coordinates.
• Left: Pans the current window to the left.
• Right: This tool will pan the current window to the right.
• Up: This option will pan the current window up.
• Down: Pans the current window down.
