What is a CAD Symbol?
A symbol is a group of smaller CAD shapes combined into a single item. Because they are grouped together, moving, resizing, or rotating the symbol changes all of its parts at the same time.
Symbols are commonly used on maps and survey plans to represent real-world objects, such as trees, light poles, or manhole covers.
Where do symbols come from?
In n4ce, you can get symbols in two ways:
Create your own: Draw the shapes yourself inside n4ce and save them as a new symbol.
Import external files: Load existing symbols directly from AutoCAD files (DWG or DXF).

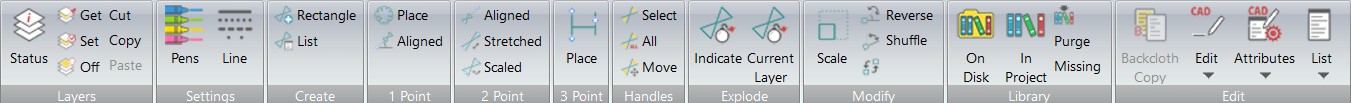

The Symbols tab reveals numerous functions you can use to view and modify your CAD drawing as explained below:
Create
Rectangle: Creates a symbol from elements within a user-defined rectangle.
How to create a symbol by rectangle:
Create all the CAD elements that will make up your new symbol.
Go to the Symbols menu and select Create By Rectangle.
Click and drag a selection rectangle that completely encloses all intended objects.
Use Lock modes to pick a precise point within the entities to serve as the symbol's insertion origin.
Adding Handles is optional, depending on how many points the symbol will be made up of, a 1-Point Symbol will not require one so, once you have selected the location for the origin, right-click to bypass handle creation. For 2-Point or 3-Point Symbols: Use Lock modes to set the second and third control handles before right-clicking to continue to the symbol creation menu.
-
You will be asked to enter a unique name for the symbol that is not already in use within the project.
Settings:
When Set Element to BYBLOCK is enabled, this allows the symbol's colours and line styles to adapt to the layer it is placed on. If disabled, it will keep the original colours and line styles as drawn at the time of creation.
Orientate Symbol Horizontal allows users to define the direction of the X-Axis and hence the Y-Axis, so when the symbol is being scaled, it is doing so in the correct direction.
Flatten Symbol to 0.0 Height will ensure that all the elements that are making up the new symbol will have a height value of 0.0. For instance, if one of the line elements used to make up the symbols had a height value of 50 for instance, that height value would be flattened to 0.0 to ensure that all the elements making up the new symbol will be at the same height when they are plotted.
Creating a symbol with the 'Ignore the CAD Height option enabled will ensure that when you come to plot the symbol, this specific symbol will ignore the CAD height value in the properties menu on the left. See image to the right for reference:
The new symbol is now available to plot in the project
List: Creates Symbol using List, this function works identically to Create Symbol by Rectangle, except that the CAD objects used to create the new symbol are selected from the active CAD List rather than by drawing a selection box.
How to Create a Symbol Using the List Function

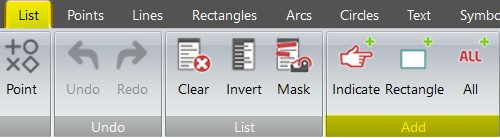

Using one of the Add functions under the List tab, select the elements your require to be added to the CAD list, then go to the Symbols menu on the top toolbar and select the Create - List option.
A dialog box will pop up asking if you want to create a symbol from the listed elements. Click Yes to proceed.
Indicate the origin of the symbol.
If required, add Handles for a 2-point or 3-point symbol, click to indicate the location of the second and third handle points. Right click to reveal the Symbols create dialog box.
Choose a name and ensure you have enabled or disabled the appropriate settings to suit the symbols required parameters.
1 Point

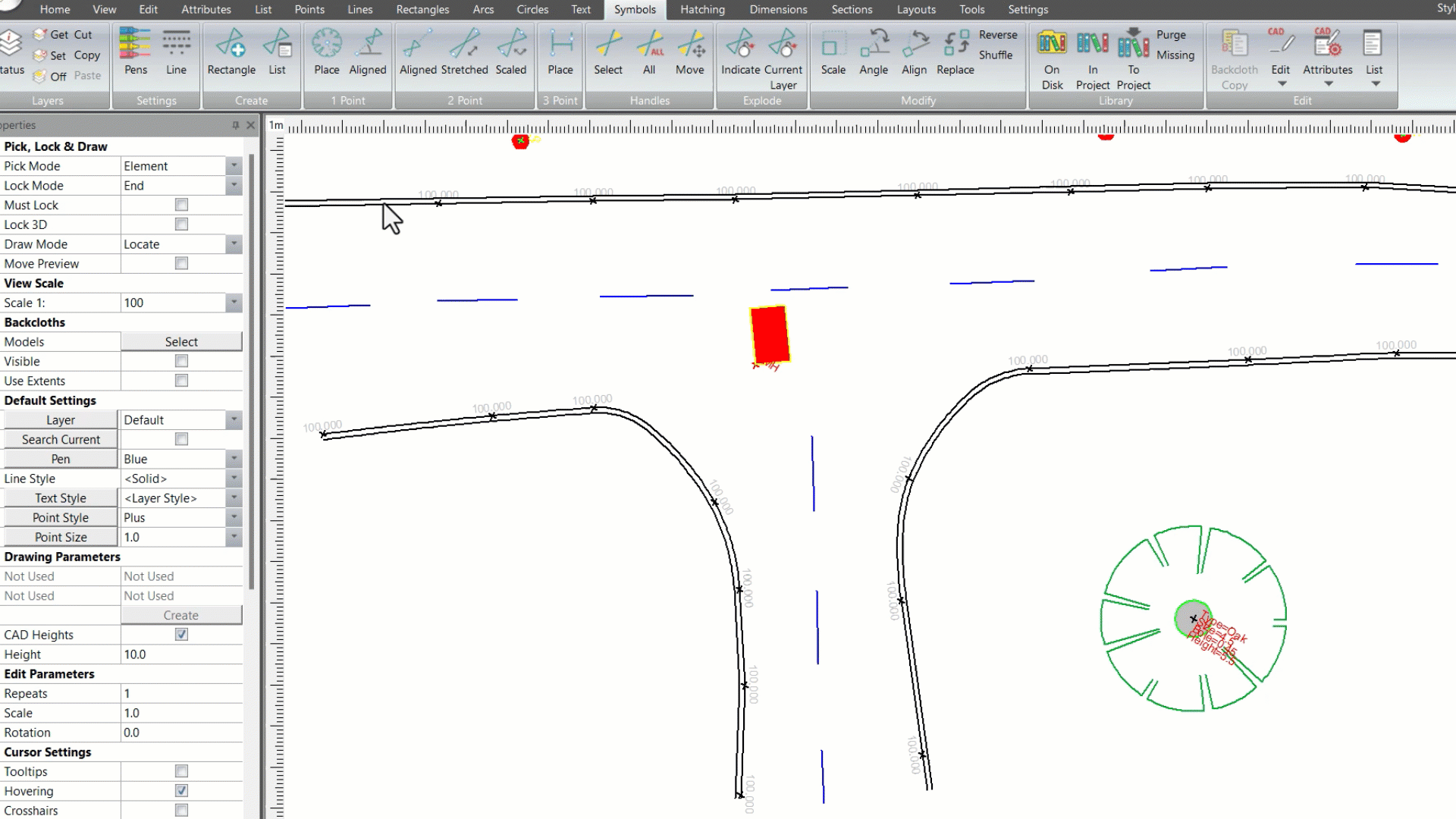

Place: Allows users to select a symbol they would like to plot, and enter an appropriate Scale and Angle (see images below) before pressing OK. An instance of the symbol will then be placed where ever a location is indicated by the user.
The Load button is provided in the event the required symbol is not listed, then they can be loaded from disk by pressing the Load button to view the contents of the symbol Library. Once you have identified the symbol you require, highlight and click on the Load button located in the middle of the Library Symbols menu.
The 'Show * Symbols' option will itemise the unreferenced symbols in the list when importing data from AutoCAD.
The 'Use Symbol Name as Layer' option allows users to plot a symbol and it will create and belong to a layer with its name.
|
Show * Symbols enabled (Unreferenced AutoCad symbols) |
Show * Symbols disabled |
Aligned: This works in exactly the same way as the above One Point Placed, however in this case the Angle box is not available. Instead, the Angle is defined after the symbol is initially placed, by moving the mouse about the insertion point to set the orientation as required.

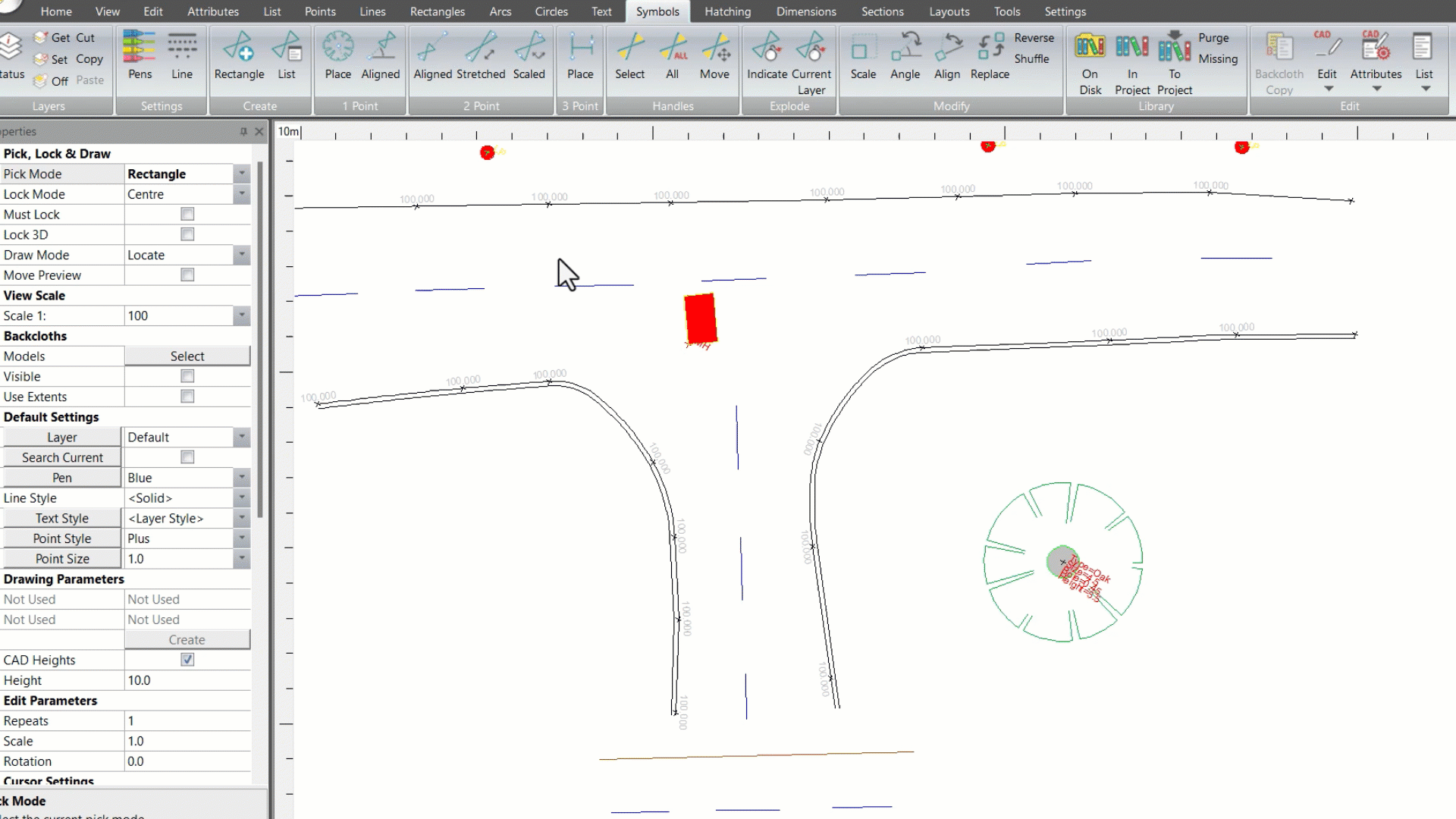

2 Point
2 Point Aligned: This function allows a two-point symbol to be positioned and angled exactly by pointing the first handle point towards an indicated location.
2 Point Stretched: This option allows a two-point symbol to be positioned and then scaled along its X-Axis towards the second point. In this case, the X-Axis is defined as a line connecting the Origin and the first Handle Point.
2 Point Scaled: This option allows a two-point symbol to be positioned and then previewed as both the scale (equal in both axis) and rotation is specified by the user moving the mouse and clicking on the intended location to fix its position and orientation.
3 Point

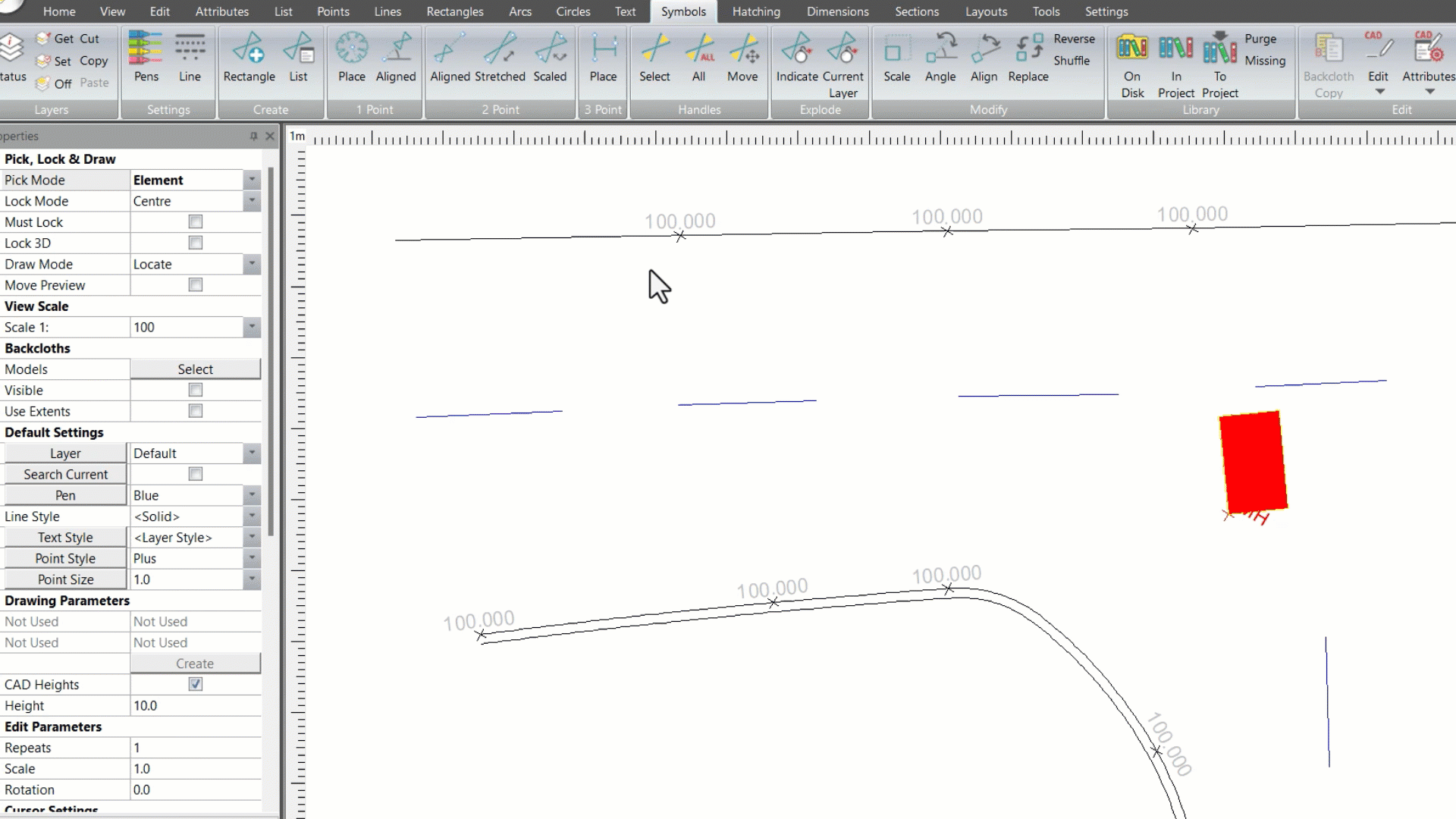

Place: This tool allows you to insert a three-point symbol (defined by an origin point and two control handles) onto your drawing with precise alignment and scaling:
Select the Symbol: Choose your desired symbol from the list of available three-point symbols.
Set the Origin (Point 1): Click on the drawing to place the symbol's base origin point.
Set X-Axis Alignment & Scale (Point 2): Click a second point to define both the rotation angle and the scale factor along the symbol's X-axis.
Set Y-Axis Scale (Point 3): Click a third point to set the scale along the Y-axis independently, allowing you to stretch or compress the symbol perpendicularly.

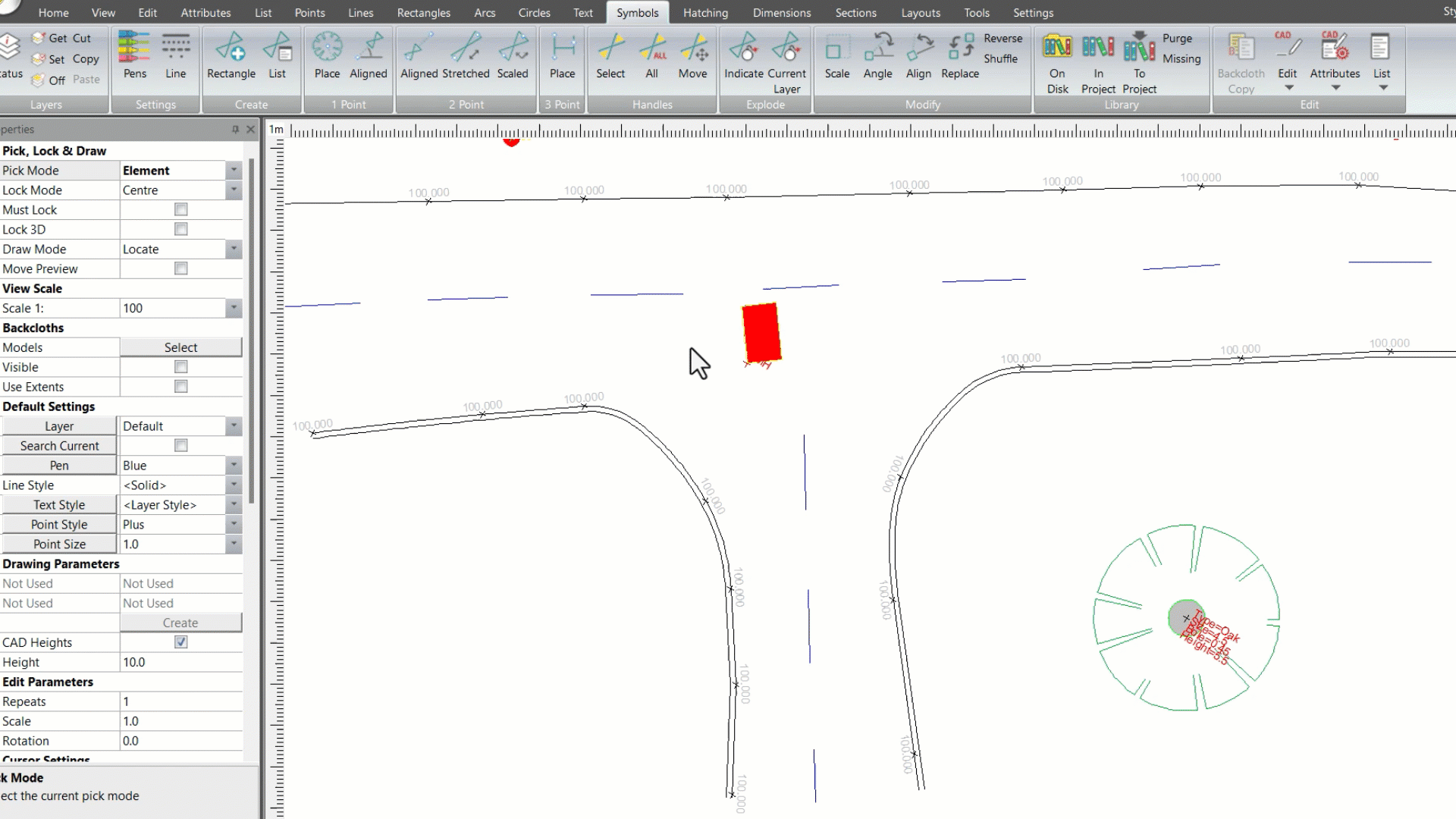

Handles
Select: Highlights the origin and any handles of a selected symbol. Handles are identified with a smaller yellow blob than then origin.
All: Highlights all the origins and handles of all the symbols in the current drawing or CAD model.
Move: Allows an identified symbol handle to be moved/dragged to a new location. So for two-point and three-point symbols, the scale and rotation can be altered long after the symbol has been located.

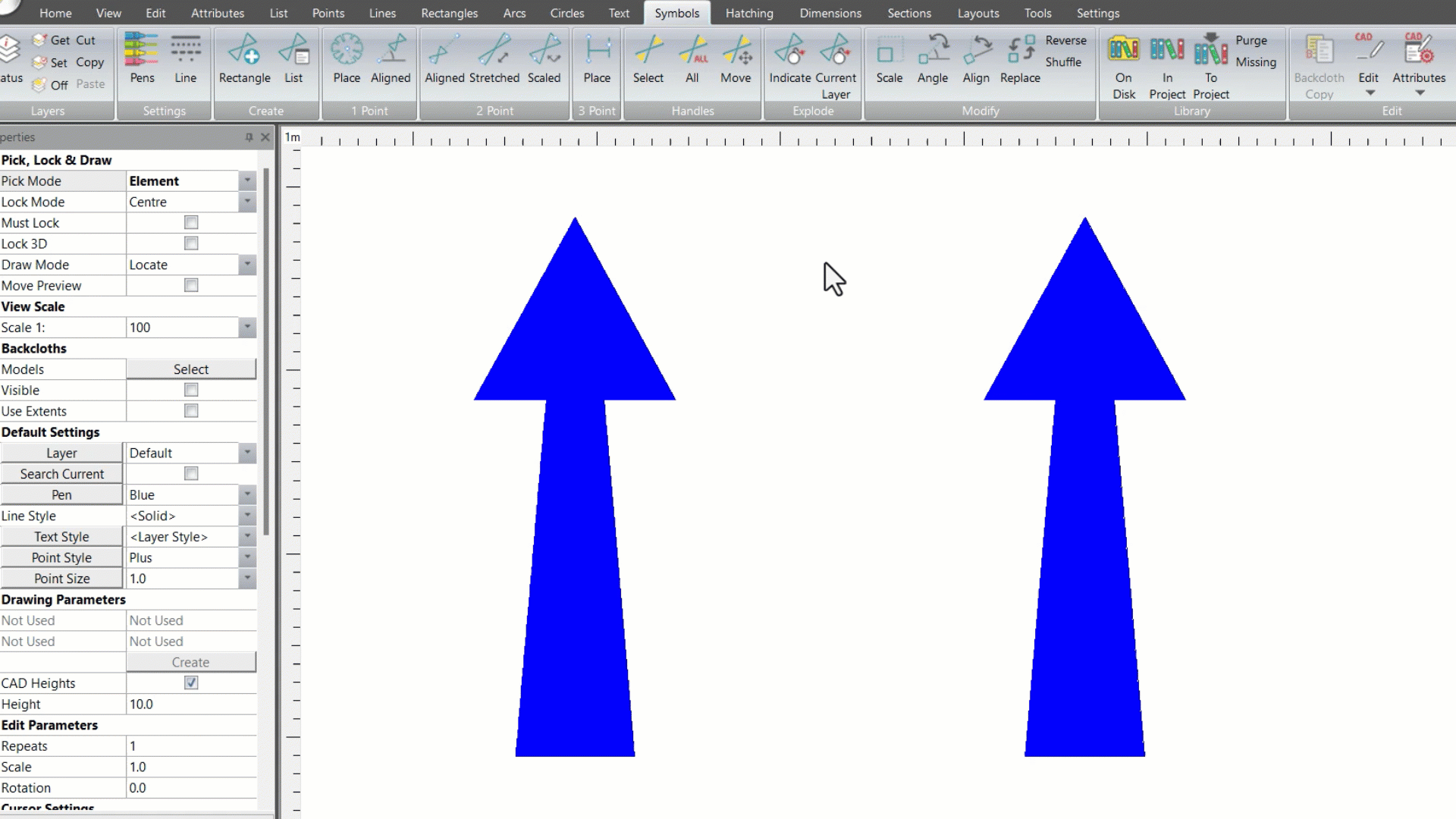

Explode
Indicate: Allows the user to explode a chosen symbol, thus returning it to its raw elements.
Current Layer: This function will explode all symbols on the current layer, returning all symbols to their raw elements.

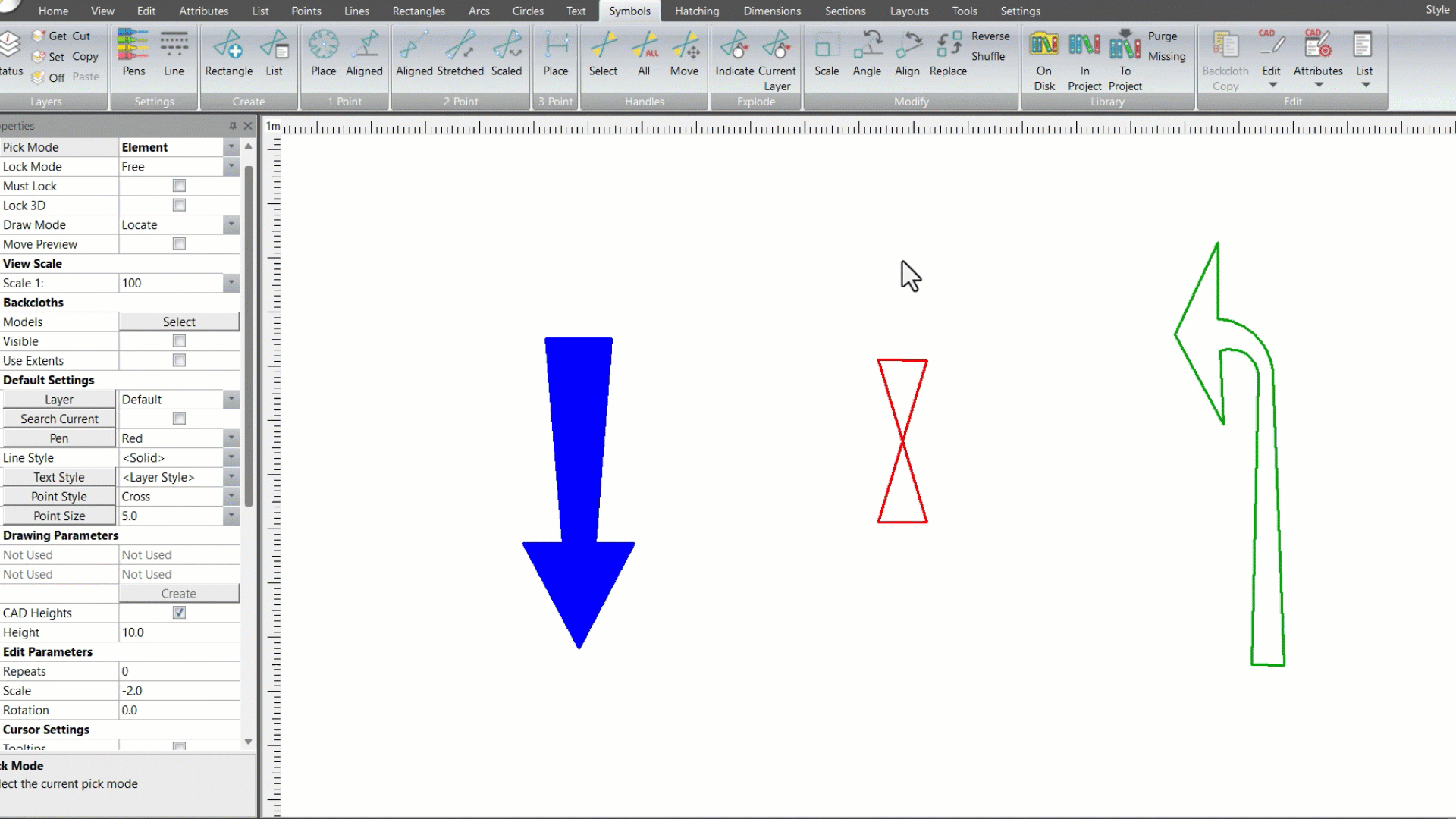

Modify
Scale: Allows a selected symbol to have it's X and or Y scale factors modified.
Angle: Allows the angle of a selected symbol to be modified by manually entering a new angle to control its orientation.
Align: This option allows the user to modify the alignment of a symbol to a user-defined location or to align to a chosen element.
Replace: Users can replace a symbol with another from the Symbols Library.
Reverse: Allows an instance of a symbol to be replaced with another. Having selected this tool and the symbol to replace, the Project Symbols dialog appears and prompts the user to select the new replacement. Having made the selection and pressed OK, n4ce will change the symbols over.
Shuffle: Allows users to toggle the origin and handles of a symbol, typically resulting in the symbol appearing differently.
Library

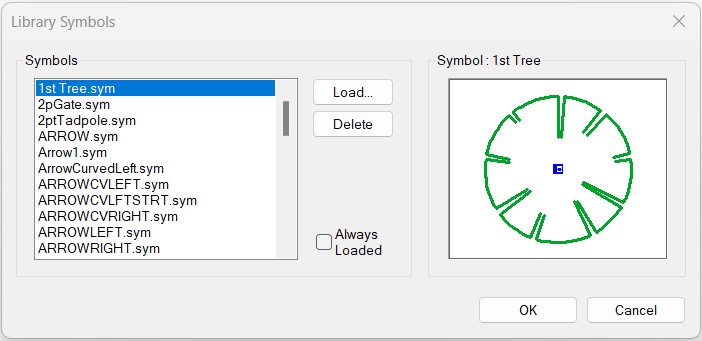

On Disk: Enables the loading and deleting of symbols from the n4ce folder on the user's PC. 'On Disk' Symbols can be found here: C:\ProgramData\Applications in CADD\n4ce\Symbols (Copy and paste into File Explorer)
Note: Symbols deleted from the library will be removed from the n4ce folder on the user's PC.
When Always Loaded option is enabled, n4ce will automatically load a user-defined list of symbols each time a new project is created. This option can be found in the On Disk Library function within your CAD project or in n4ce's settings menu.
In Project: This function allows users to; Load, Save, Delete, Rename and Invert Symbols that have already been added to the project's database. In addition, there are three options for the type of symbol; Normal, North Point and Scale Bar.
| Allows new symbols to be added from the 'On Disk' library (Local directory) | |
| Will save current library on symbols and load automatically in new projects | |
| Deletes the selected symbol(s) from the library (Can be re-added from 'On Disk') | |
| Users can change the name of any symbols in the library | |
| This function highlights all the unselected symbols excluding the current selection | |
| When selected, anonymous symbols imported from AutoCAD will show in the list box |
You can use this manager to save symbols that were automatically imported via DWG or DWF files. They will show in the List and you can then use the Save button to save them to your Symbols folder so they can be reloading into future projects if required.
Instead of deleting symbols manually, we recommend using the Purge function to safely remove only unreferenced symbols without risking broken drawing links.
AutoCAD dimension and table blocks appear as symbols with an *. You can hide these from the list to reduce clutter by disabling the Show* Symbols option.
To Project: Converts an unnamed symbol into a permanently saved project symbol (no name allocated upon initial creation).
When creating a symbol, you are prompted to enter a name. If you leave the name blank, the symbol becomes an unreferenced symbol and will not appear in your main Symbol Library. The To Project tool allows you to select these unreferenced symbols and assign them a permanent name, adding them directly to your project library for future use.

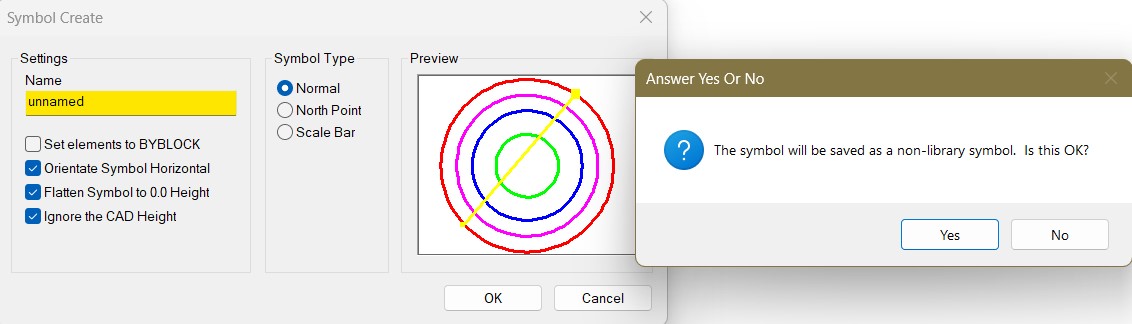

The image below shows a symbol being created without a name. This creates an unreferenced symbol.
The image of the dialog box that appears when you use 'To Project' and select an unreferenced symbol.
Purge: Displays a list of all symbols in the project that are currently unused. You can select individual symbols and click Don't Purge to retain them, pressing OK will delete all remaining unreferenced symbols from the project.

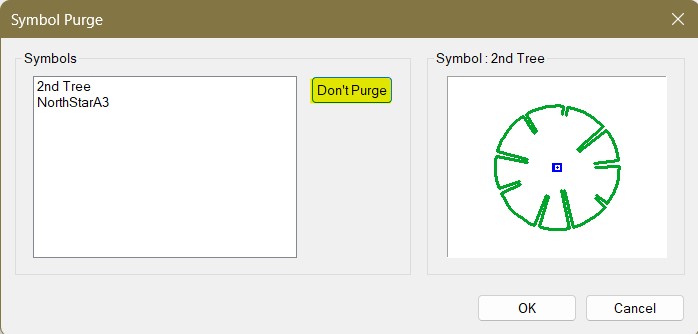

List box before the purge function has been used > 'Don't Purge' function used to retain '1st tree' symbol

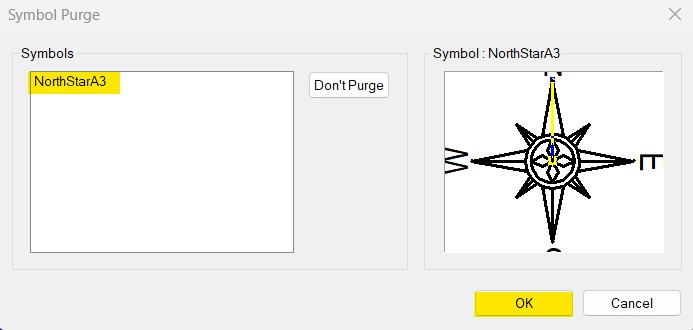

Purge function used to remove 2nd Tree, leaving only 'NorthStarA3' symbol as it is in use in the project

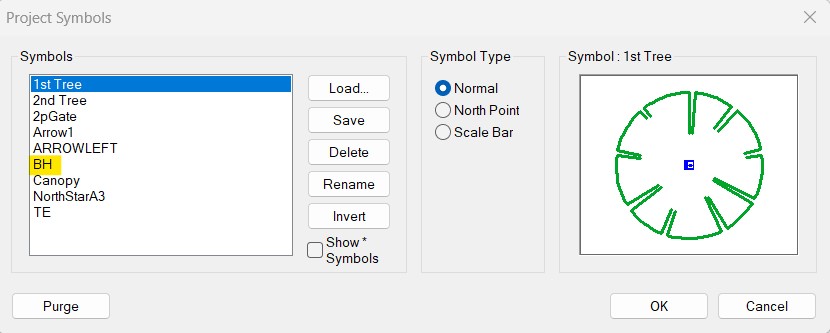

Missing: Creates a report itemising the missing symbols from the project library so users can add them if required.
The function finds missing symbols from the project library and prompts users to add
Missing function used and now showing missing symbol BH in the 'In Project' library
Edit
- Backcloth Copy: Copies an indicated symbol from a backclothed CAD model into the current one.
- Edit: Users can Modify, Mirror, and Rotate symbols. For more information, click on the individual links.
- Attributes: Allows the user to Set, Get, and view Properties of the selected symbols. For more information, click on the individual links.
- List: Will allow the user to Add and Remove symbols from a list. For more information, click on the individual links.
