Parking Bay Examples

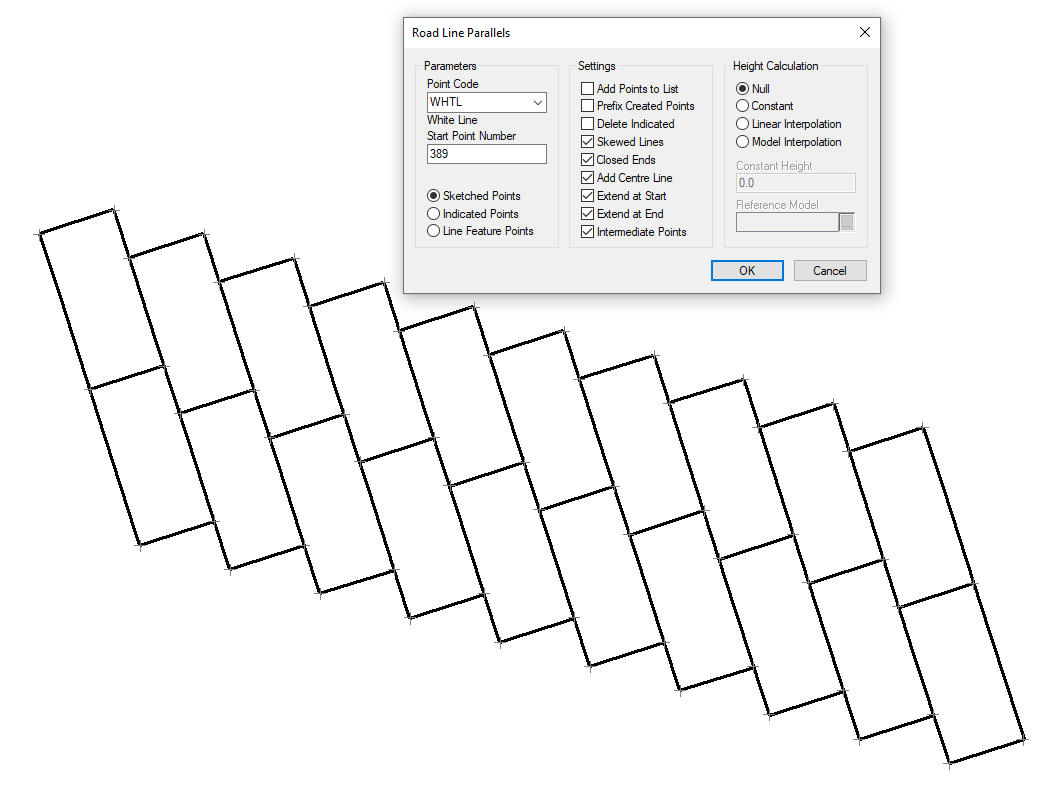

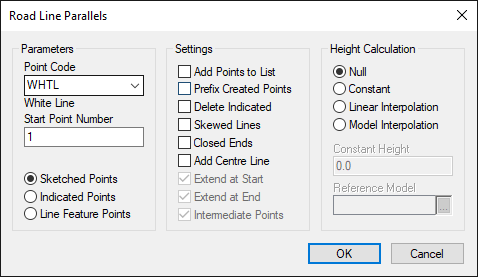

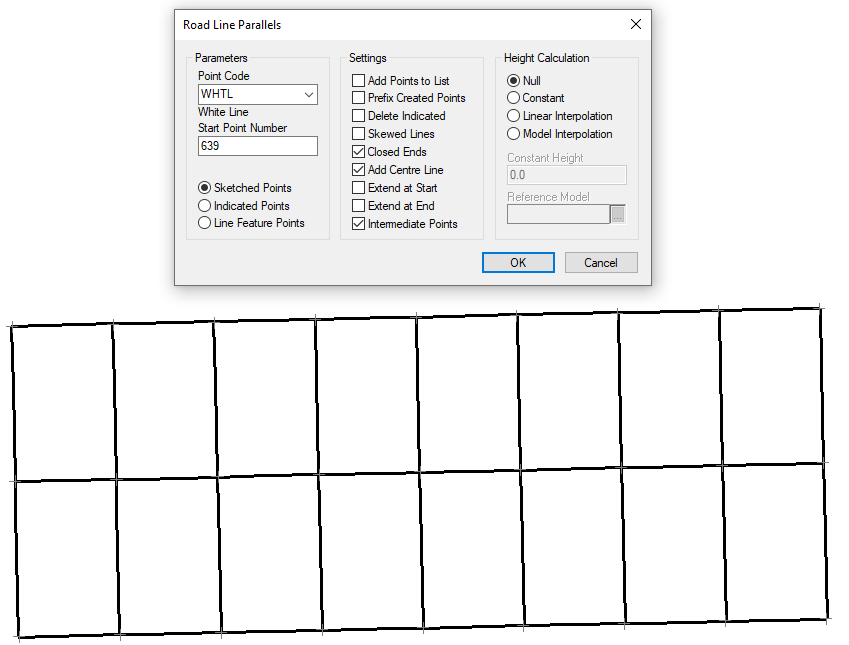

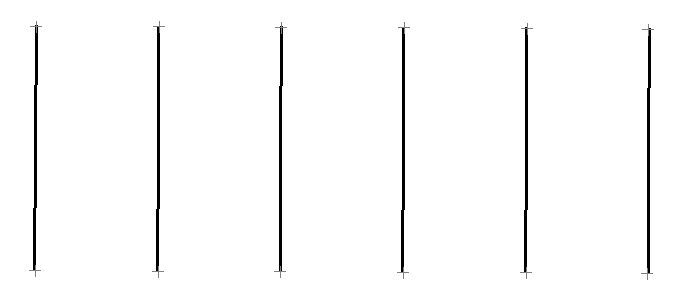

This page lists some examples of the various types of parking bays that can be automatically generated in n4ce Pro and Designer.

All bays are defined by indicating the bottom, then the top of the leftmost line, then a point on the next bay and then the last bay.
